Step 7: Configure your product

Now it's time to configure the products, so please move to the 'Configuration' tab. On the left side you find all products. The other side contains all configuration settings of the selected product.

The table contains 4 columns:

The item's name
Actual configuration
The origin of the configuration item
The variable name (will be used in makefile and other configuration files)

To change a setting, simply click on the button and the setting will be toggled. An option will flip from 'set' to 'not set' and vice versa. Alternatives jump to the next possible alternative.

If the item is locked, this feature cannot activated. In this case the underlying feature requires another feature, but the needed feature belongs to an asset that is currently not part of the product.

A red item indicates that a constraint is violated by the current setting. To get more informations, move the mouse to the item and wait for the tool tip window (this will be imporoved in future).

You may save the product settings now, press the export button. The current settings are stored in a property file.

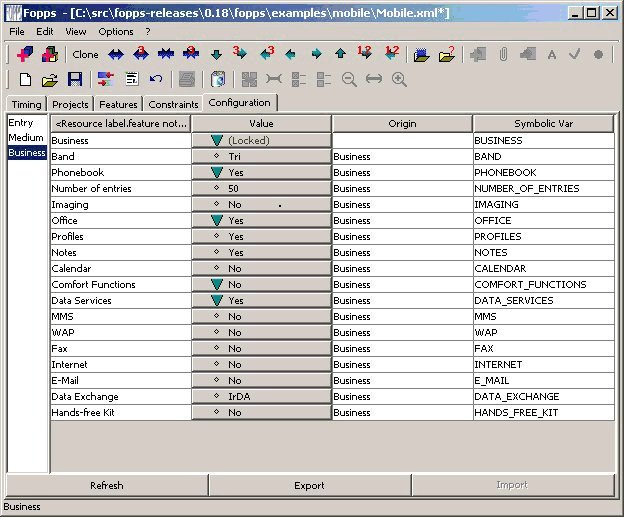

Configuration of the 'Business' product
